Steps to Diagnose a VVT Solenoid on a GM 2.4L

  1. Gain access to the VVT solenoids by removing the air cleaner outlet duct and engine cover. ↗ 0:48

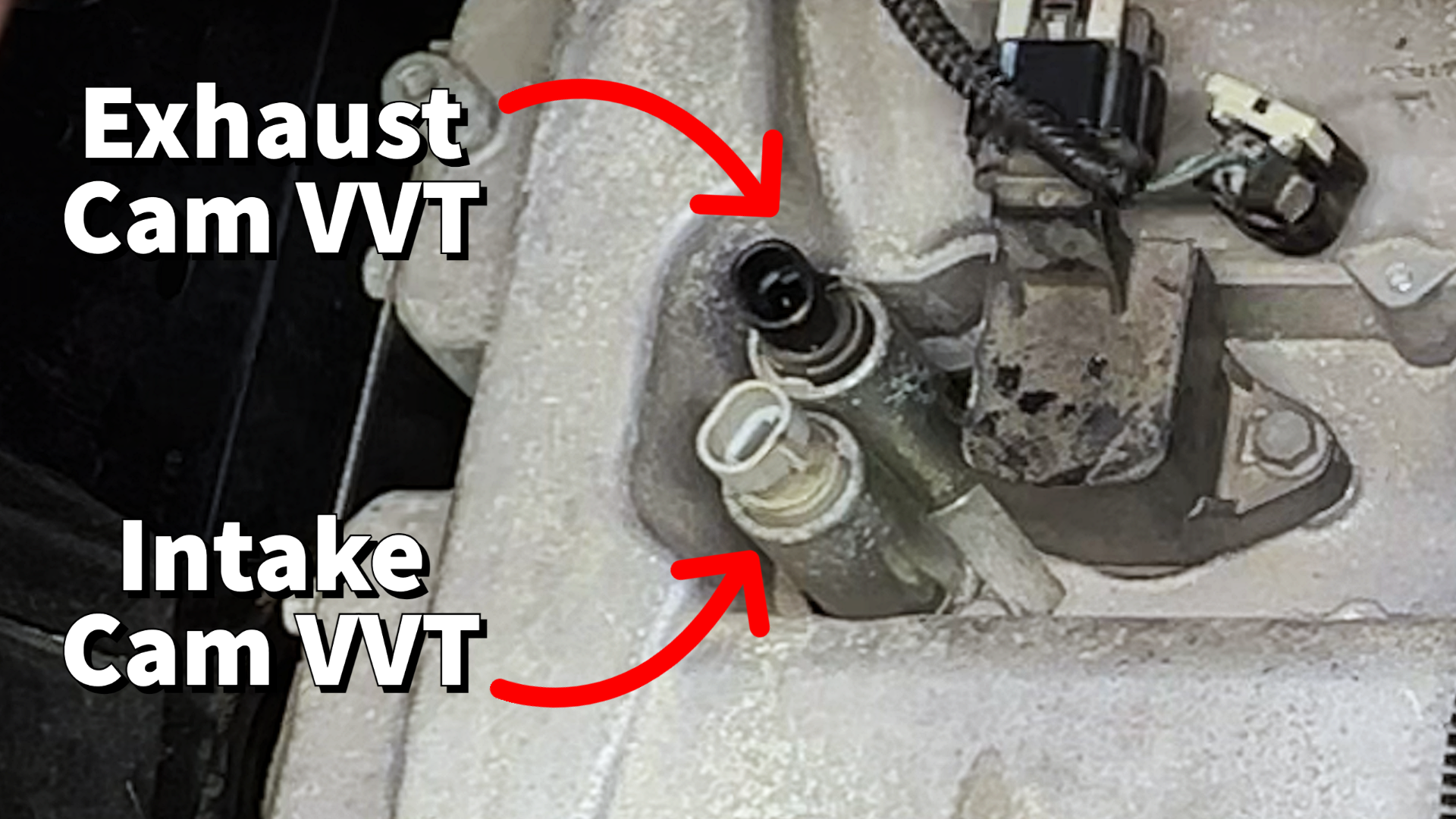

  2. Locate and unplug the VVT solenoid you want to test. ↗ 1:56

Enlarge illustration 1

Set up the multimeter

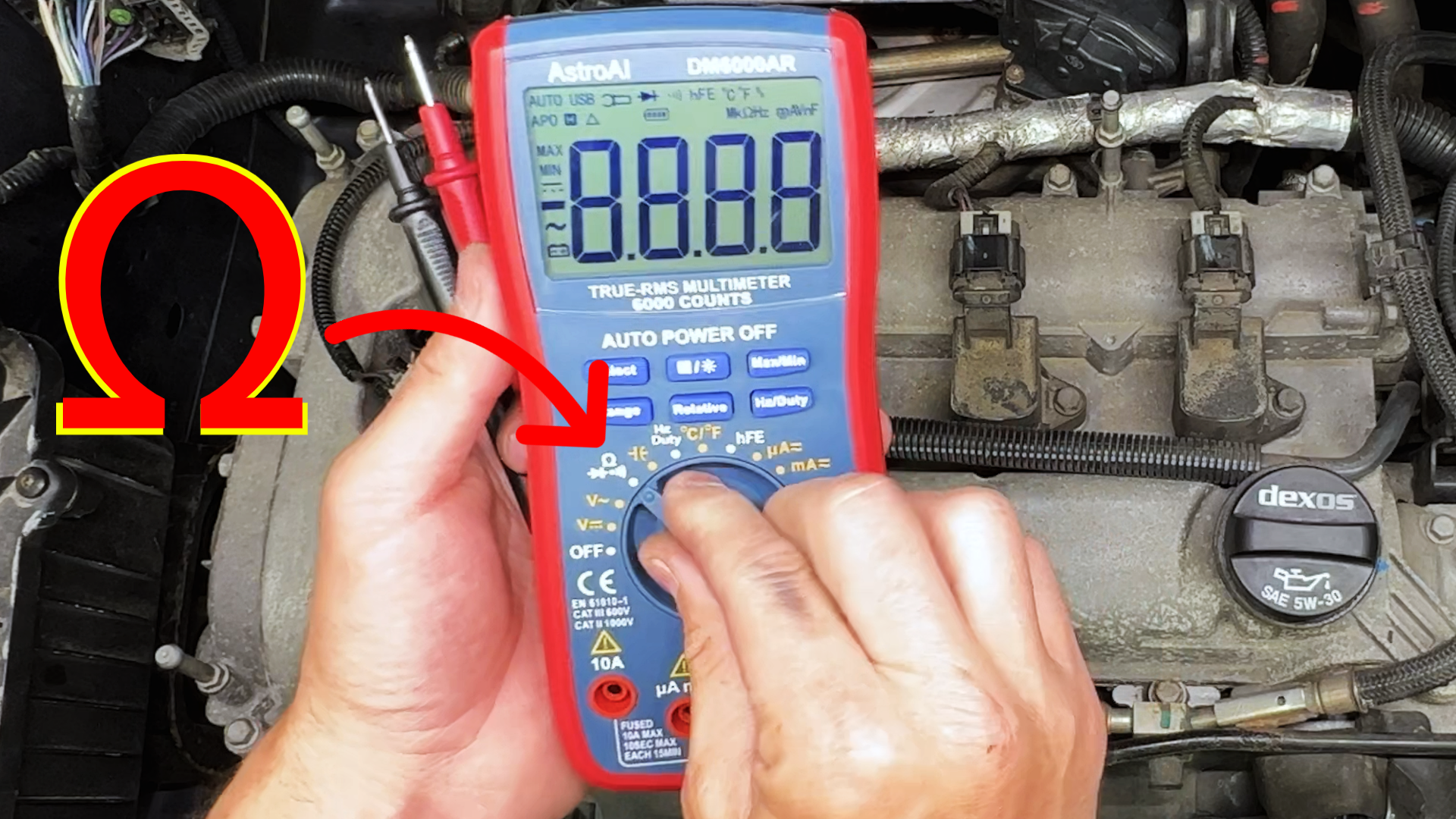

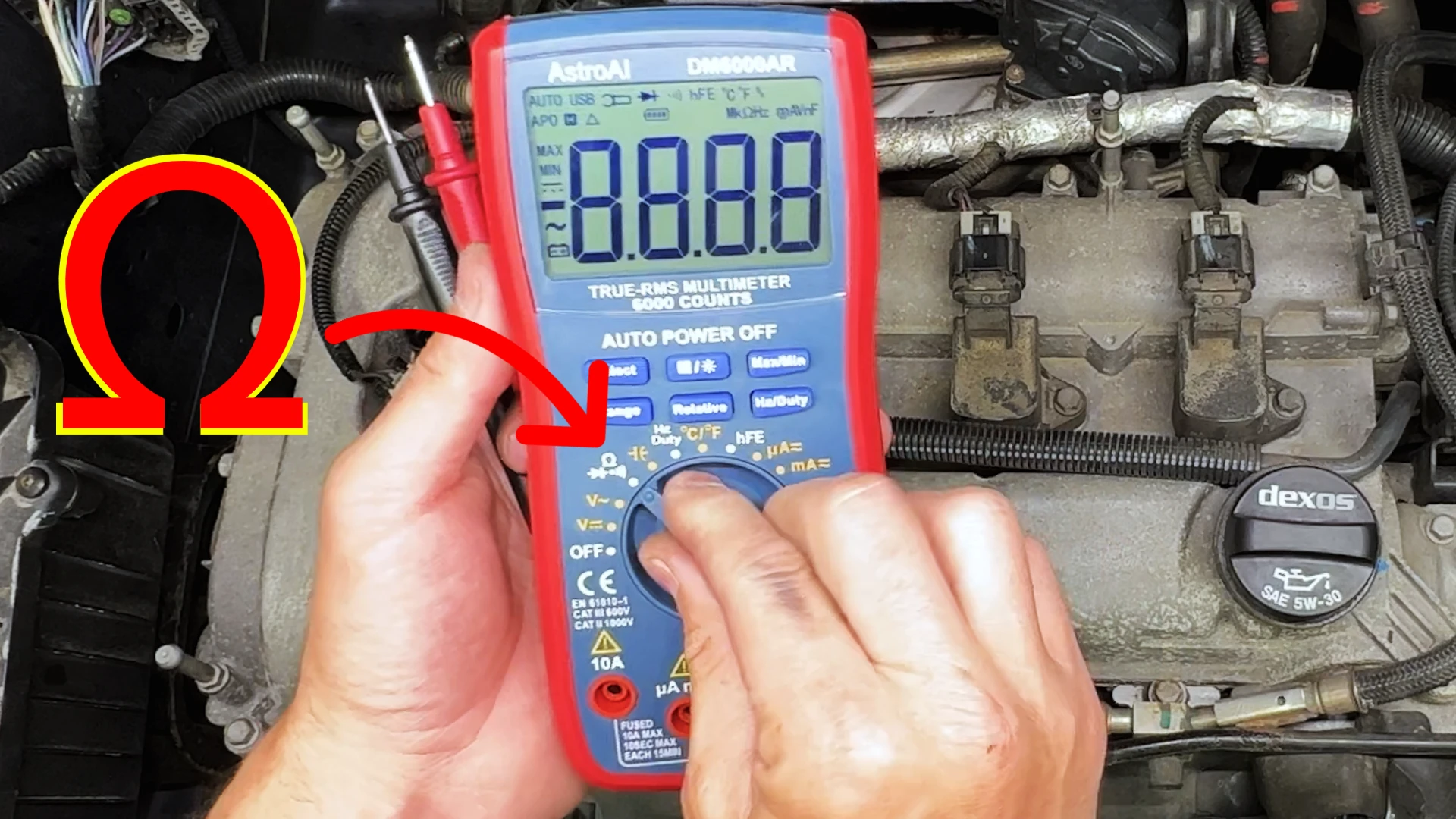

  1. Set up your multimeter to read resistance (Ohms setting). ↗ 2:43

Enlarge illustration 2

Measure solenoid resistance

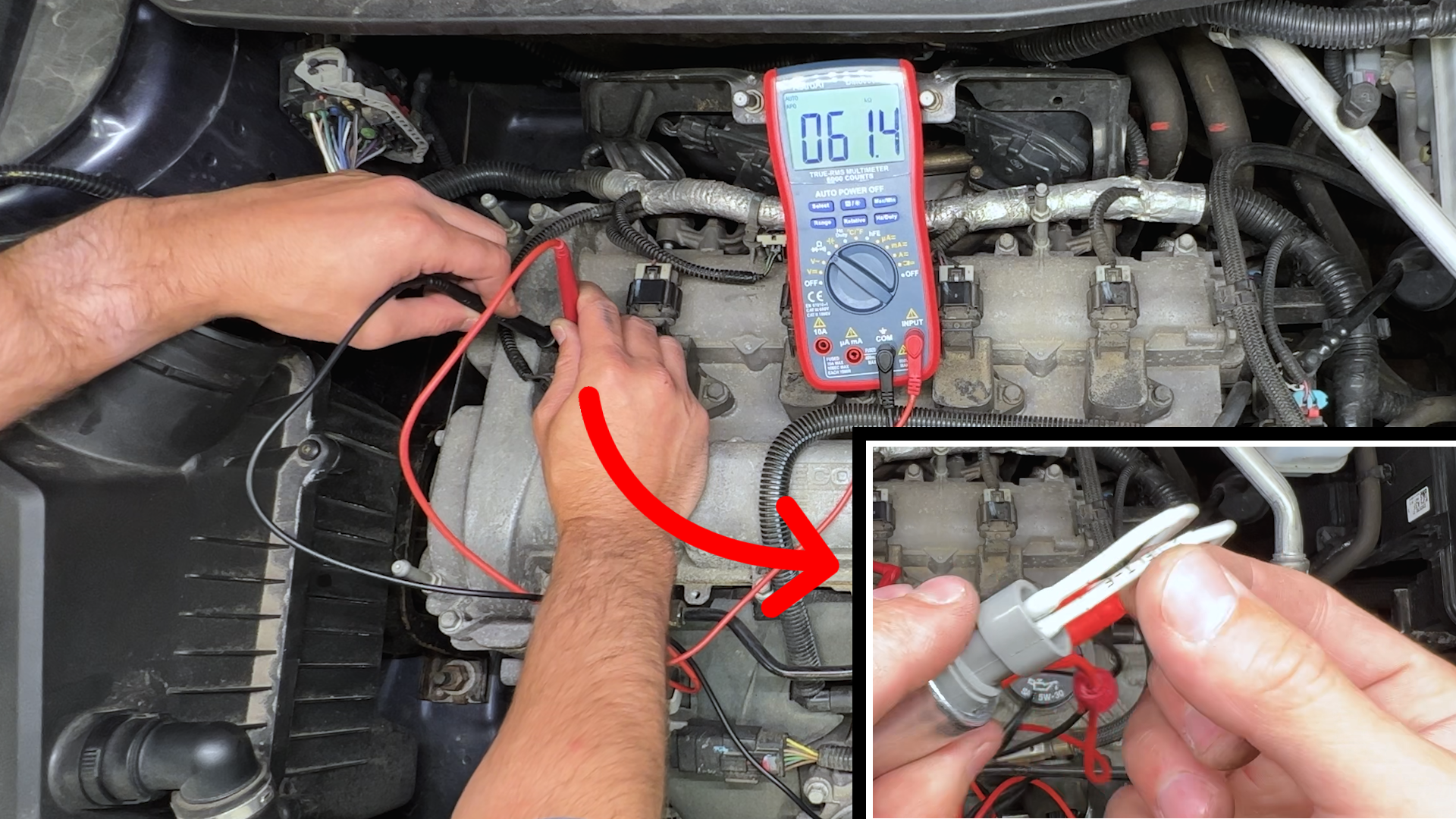

  1. Place one multimeter lead on each terminal of the VVT solenoid to measure its internal resistance. ↗ 3:01

Enlarge illustration 3

  1. Compare the multimeter reading with spec (8–13 Ohms).

    • If the solenoid is outside that spec, it’s faulty and must be replaced.

  1. Follow our step-by-step instructions for GM 2.4L VVT solenoid replacement.
